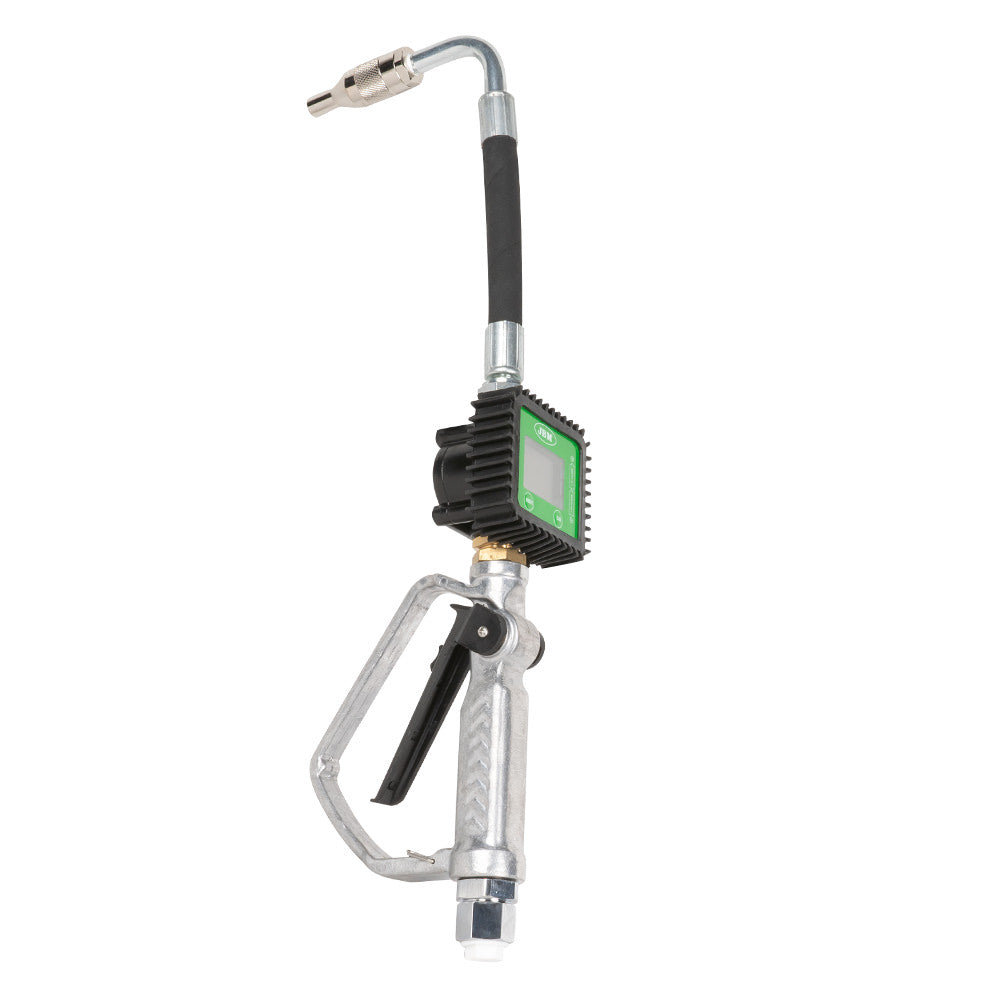

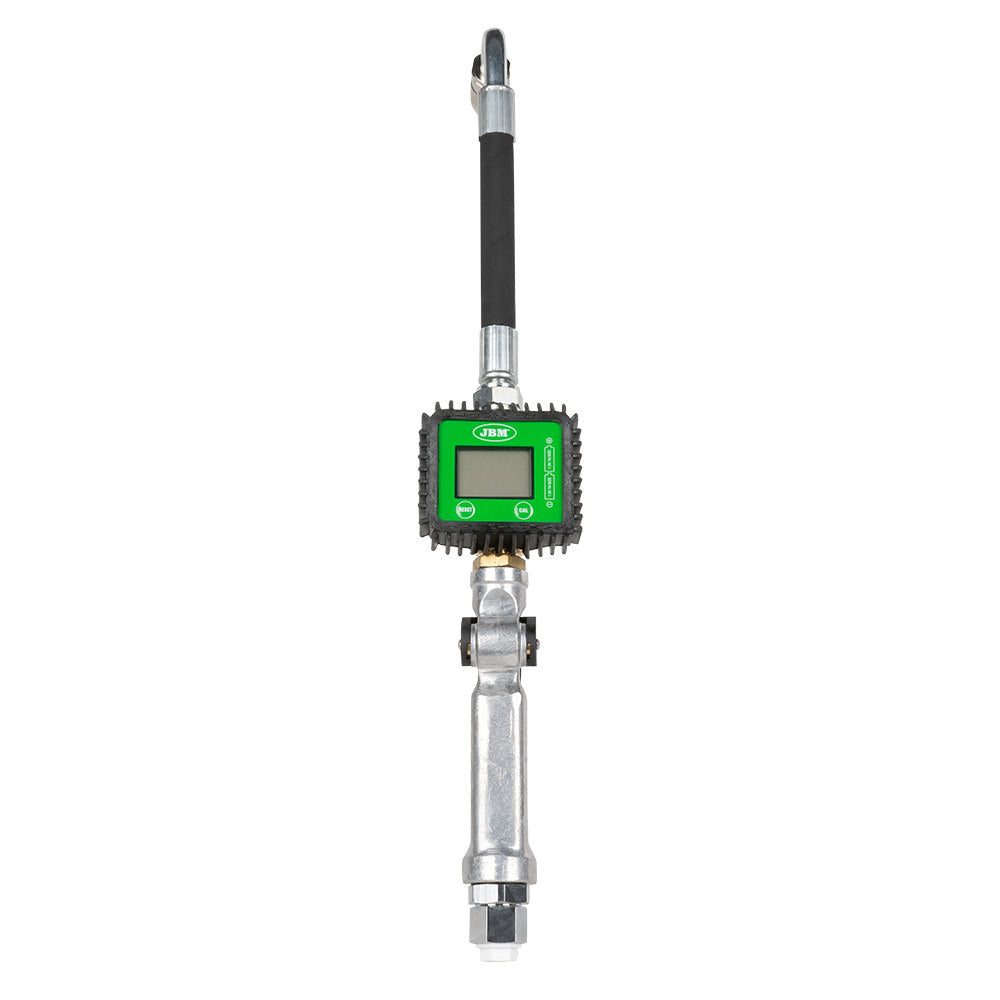

DIGITAL HOSE END OIL METER WITH PIPE

Measures the quantity of dispensing engine oil, Gear Oil, ATF Oil, anti-freeze and allied products, with the construction of aluminium body swivel and in-built balanced valve.

Air inlet: 1/2" BSPF
Flow rate: 1-35 L/min
Working Pressure: 6-8 bar
Max. working pressure: 100 Bar
Oil temperature range: -10-60 °C
Maximum viscosity: 240 SAE
Battery: 2×1.5V (battery included)
Weight: 1.4 kg
Flow meter accuracy: ±0.5%
Flow meter repeatability: 0.2%
Discharge Rate per Revolution: 25ml/R
